Consensus Definitions and Interpretation Templates for Dynamic Ultrasound Imaging of Defecatory Pelvic Floor Disorders
Jonia Alshiek, M.D., M.Sc. • Sthela M. Murad-Regadas, Ph.D. • Anders Mellgren, M.D. • Phyllis Glanc, M.D. • Gaurav Khatri, M.D. • Lieschen H. Quiroz, M.D. • Milena M. Weinstein, M.D. • Ghazaleh Rostaminia, M.D., M.Sc. • Lucia Oliveira, M.D. • Hina Arif-Tiwari, M.D. • Linda Ferrari, M.D. • Liliana G. Bordeianou, M.D., M.P.H. • S. Abbas Shobeiri, M.D., M.B.A.
Funding/Support: None reported.
Financial Disclosure: None reported.
This article is being published concurrently in Diseases of the Colon & Rectum, International Urogynecology Journal, and Urogynecology. The articles are identical except for minor stylistic and spelling differences in keeping with each journal’s style. Citation from any of the 3 journals can be used when citing this article. This consensus has been reviewed by the supporting societies.
Diseases of the Colon & Rectum Diseases of the Colon & Rectum. 66:p 200-216, February 2023.
Jonia Alshiek, Sthela M. Murad-Regadas, and Anders Mellgren contributed equally as first coauthors. Liliana G. Bordeianou and S. Abbas Shobeiri contributed equally as senior coauthors.
Correspondence: Liliana Bordeianou, M.D., M.P.H., Massachusetts General Hospital Surgery, 55 Fruit St, GRB 425, Boston, MA 02114. E-mail: firstname.lastname@example.org
See “editorial” on page 169.
The Pelvic Floor Disorders Consortium (PFDC) is a multidisciplinary organization of colorectal surgeons, urogynecologists, urologists, gynecologists, gastroenterologists, radiologists, physiotherapists, and other advanced care practitioners. Specialists from these fields are all dedicated to diagnosing and managing patients with pelvic floor conditions but approach evaluation and treatment of such patients with their unique perspectives given differences in their training. The PFDC was formed to enable collaboration between these specialties in developing and evaluating educational programs, creating clinical guidelines and algorithms, and promoting high-quality care for this unique patient population. The recommendations included in this document represent the work of the PFDC Working Group on Ultrasound in Imaging of Defecatory Disorders of the Pelvic Floor (members listed alphabetically in Table 1). The objective was to generate inclusive, rather than prescriptive, guidance for all practitioners interested in considering pelvic floor ultrasound imaging in their assessment of defecatory pelvic floor disorders.
STATEMENT OF THE PROBLEM
Dynamic pelvic floor ultrasound (PFUS) has been shown to be an effective and relatively inexpensive method for evaluating pelvic organs, including the urethra, bladder, vagina, cervix and uterus, anal canal, rectum, and other pelvic floor structures, such as the levator ani muscles. PFUS can be performed using transperineal/introital, endovaginal, or endoanal/endorectal approaches. There is considerable evidence for the use of PFUS imaging to quantify pelvic floor disorders. Still, there is significant variation across disciplines regarding the degree of utilization of PFUS for such indications and the preferred choice of specific PFUS technique.,,, Also, there is variability in the definitions of pathology described on PFUS between specialists, which results in more significant variability in how different physicians and specialties interpret and use findings seen on PFUS. These factors create challenges for health care providers in their efforts to counsel patients and effectively communicate and cooperate between specialities. Patients with pelvic floor disorders often have recurrent or multifactorial symptomatology, which may require care from multiple disciplines. Furthermore, many health care providers may be concurrently managing different aspects of pelvic floor dysfunction in the same patient in parallel. Lack of coordination and communication in imaging terminology can create misunderstandings and confusion for health care providers and patients.
The American Institute of Ultrasound in Medicine and the International Urogynecologic Association generated a practice parameter guideline that made one of the first attempts at standardization of the language in the field of pelvic floor ultrasonography. However, the document had limited reference to defecatory pelvic floor disorders. Thus, this effort was undertaken with the explicit goal of inviting and including representatives from all relevant clinical specialties for whom PFUS holds clinical significance. This document aims to create a universal set of recommendations for a minimum common language for PFUS interpretation and reporting of defecatory pelvic floor disorders, with relevance across disciplines and all PFUS modalities.

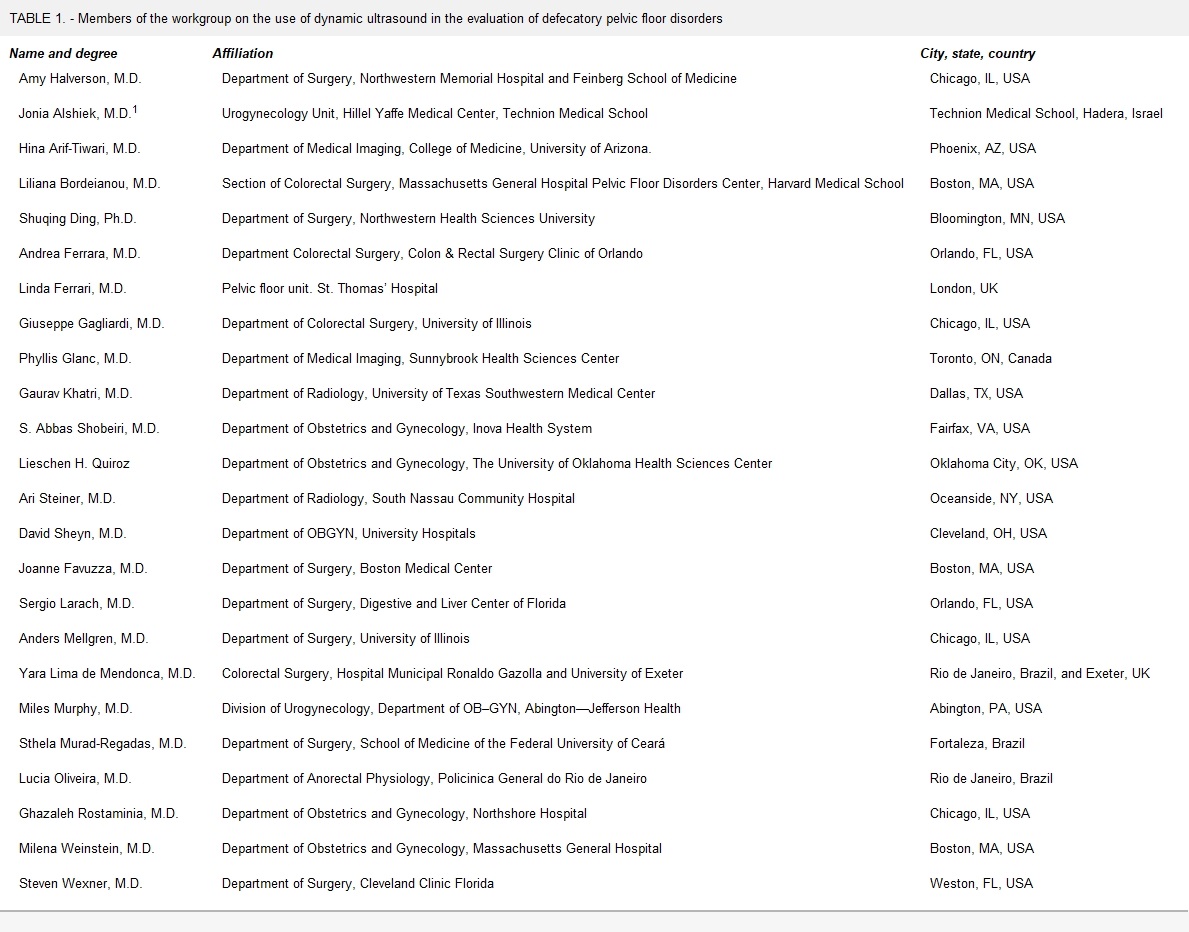

This document was developed by the Pelvic Floor Disorders Consortium (PFDC) Working Group on Ultrasound Imaging of Defecatory Disorders and created under the guidance of the American Society of Colon and Rectal Surgeons (ASCRS). The PFDC comprises clinicians with demonstrated expertise in the care and treatment of patients with pelvic floor conditions. The Working Group was created by enlisting PFDC volunteers. Invitation criteria included leadership in pelvic floor disorders with academic scholarship and a history of crossdisciplinary collaboration. Members of the working group participated in at least 2 group preliminary phone calls and researched an assigned topic. Each topic had at least 2 members assigned, always from different specialties. Each pair identified the literature on a relevant topic and performed a systematic review of the literature using a specified format.
These systematic reviews involved an organized search of MEDLINE, PubMed, Embase, and the Cochrane Database of Collected Reviews performed up to April 1, 2019. Retrieved publications were limited to the English language, but no limits on the year of publication were applied. The search terms included “fecal incontinence,” “urinary incontinence,” “constipation,” “lower urinary tract symptoms in men and women,” and “pelvic floor disorders in men and women.” The search strategies used “dynamic ultrasound,” “pelvic organ prolapse,” “obstructed defecation,” “anal incontinence,” “pelvic pain,” “dyspareunia,” “obstetric injury,” “OASIS” (obstetric anal sphincter injuries), “anal sphincter injury,” “pelvic floor ultrasound,” “translabial ultrasound,” “transperineal ultrasound,” “endoanal ultrasound,” “endorectal ultrasound,” “transvaginal ultrasound,” “echodefecography,” “enterocele,” “internal intussusception,” “rectocele,” “sigmoidocele,” “perineal descent,” “levator ani tears,” “levator ani avulsion,” “levator injury,” “pelvic floor dysfunction,” and “rectal prolapse” as primary search terms. Directed searches of the embedded references from the primary articles were also sometimes performed. Criteria for inclusion of references included articles that described original descriptions of relevant ultrasound measurements or clinically relevant literature describing the use of ultrasound imaging in clinical practice. The workgroup presented its preliminary research to the consortium at large for further discussion.
Pelvic Floor Consortium Expert Meeting
The Pelvic Floor Consortium Expert Meeting convened on June 2, 2019, in Cleveland, Ohio. It included 126 in-person (or online) participants from the United States, Europe, Asia, England, and Canada. These experts belonged to several subspecialties (colorectal surgery, gastroenterology, urogynecology, urology, physiotherapy, and radiology). They included members of numerous professional societies involved in the diagnosis and treatment of pelvic floor disorders. The event was also audited by formal representatives from the ASCRS, the Society of Abdominal Radiology (SAR), the American Urogynecologic Society, the International Urogynecological Association (IUGA), and the Society of Gynecologic Surgeons. The meeting was funded by the ASCRS.
The participants at the expert consortium meeting analyzed the proposed sonographic techniques and definitions for each of the conditions reviewed in this statement, ultimately offering consensus recommendations for the technique and interpretation of PFUS as well as a standardized and clinically relevant synoptic reporting template. The group labeled this final template as the “Ultrasound Interpretation Template for the Initial Measurement of Patient-Reported Defecatory Pelvic Floor Complaints,” or “Ultrasound-IMPACT” (see Supplement 1
For a recommendation to make it into the Ultrasound-IMPACT template, expert consensus was required. Expert consensus was defined as >70% agreement among the voting participants. A subsequent committee meeting was then held to summarize these statements while keeping the expert consensus panel discussion directives in mind.
In summary, this work is not meant to be an exhaustive description or pictorial essay of all disease processes found on PFUS imaging. Rather, this article sought to identify areas of consensus across disciplines so that a common language can be used to achieve the shared goal of caring for patients with defecatory pelvic floor disorders. Areas where consensus was not achieved remain potential topics for research to help further standardize best practices in the future and across all relevant disciplines.
Once the document was finalized, the proposed recommendations were presented for review by the ASCRS Pelvic Floor Disorders Steering Committee. This Steering Committee is directed to develop clinical practice recommendations on colorectal pelvic floor disorders based on the best available evidence. The ASCRS Steering Committee edited the document and sent it to the ASCRS Executive Committee for final approval for publication. Similar reviews and endorsements were also given by the American Urogynecologic Society Publications Committee and Board of Directors, the SAR Board of Directors and SAR Disease Focused Panel on Pelvic Floor Dysfunction, the ICS Board of Directors, and the Executive Board of the Society of Gynecologic Surgeons. In addition, the document was reviewed by the IUGA Board of Directors. In accordance with the IUGA policy, the IUGA Board of Directors distributed the document for review by its entire membership and subsequently endorsed the document. Before submission of the document for publication, a rereview of the relevant literature was performed to include articles published between April 1, 2019, and March 1, 2021, and to assure that key new works pertaining to topics of defecatory pelvic floor disorders were also considered.
Overview of Techniques
Dynamic PFUS has 3 commonly used modalities: endoanal/endorectal (aPFUS), transperineal/introital (pPFUS), and endovaginal (vPFUS). Regardless of modality, these studies can be performed in a radiology department or an office setting, depending on the available level of sonographic expertise and appropriate equipment. Advantages of ultrasound evaluation include good patient tolerance, lack of radiation exposure, and the ability to decide on a case-by-case basis to perform ultrasound imaging as appropriate. It is essential to ensure that the imaging clinician, whether in-office or in the radiology department, has undergone specific training to provide quality imaging and interpretation of the examination.

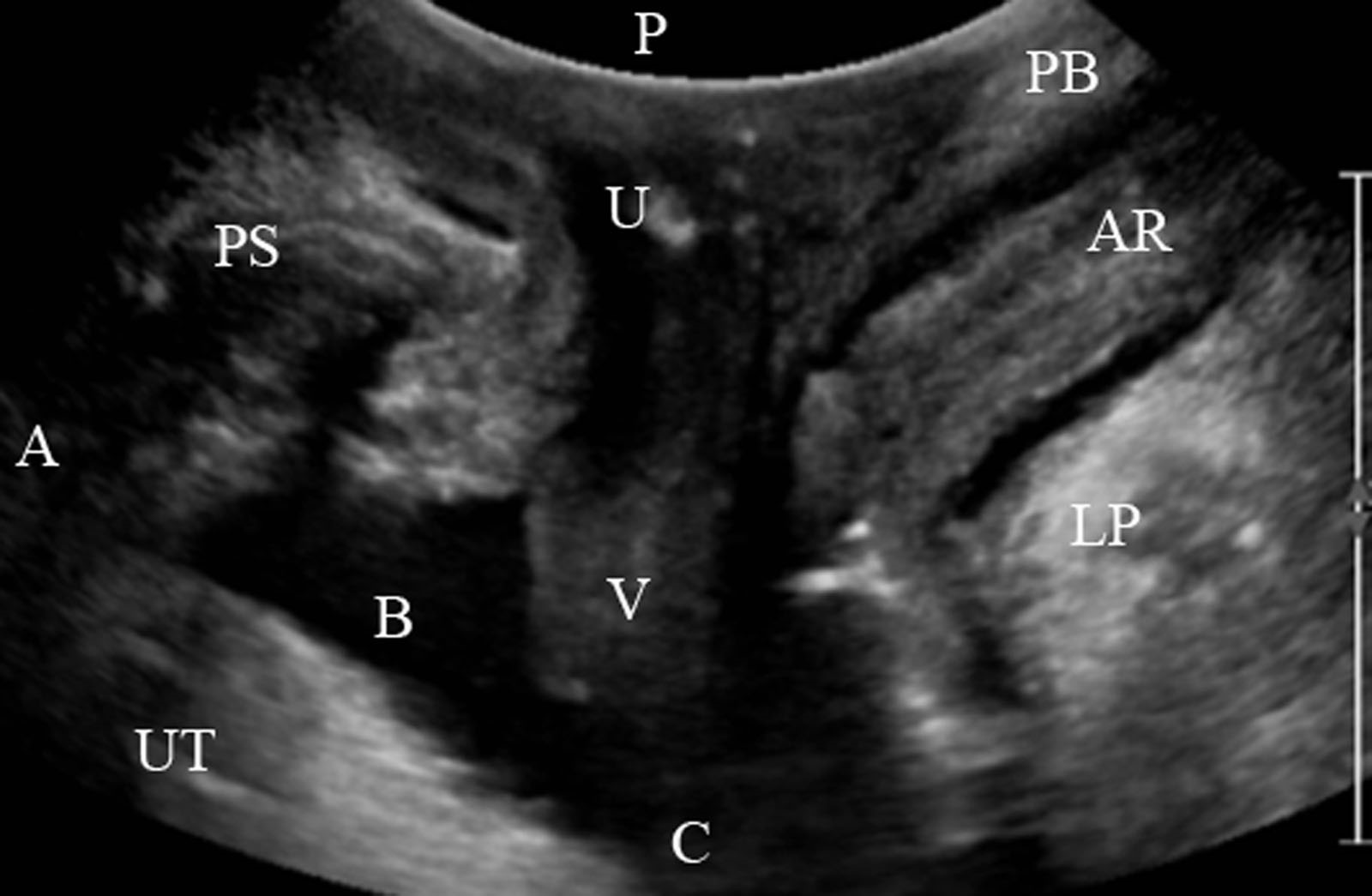

An appropriate transducer can be placed gently on the perineum or between the labia and the anus during ultrasound imaging. For the average patient, the examination is not painful. Following the acquisition of static images, a dynamic ultrasound video (cine loop) can be performed by instructing the patient to perform a strain/Valsalva maneuver and, in some cases, to attempt to empty ultrasound gel from the rectum to simulate defecation. Recommended ultrasound imaging protocols typically involve both dynamic 2-dimensional (2D) and 3-dimensional (3D) volume acquisitions using aPFUS (Fig. 1A), pPFUS (Figs. 1B and C), or vPFUS (Fig. 1D) techniques. Each modality conveys complementary information and may be used on the basis of the specific clinical indication. Physicians using ultrasound imaging may have various transducers and varying degrees of skill sets for different ultrasound assessment portions.
For further discussion, the terminology we use when referencing these techniques is described in the following paragraphs.
Traditionally, aPFUS is performed using an ultrasound scanner with a 7- to 10-MHz rotating transducer (focal range, 3–45 mm), providing a 360° axial view of the anal canal (Fig. 1A). The patient is usually scanned in either the left lateral or the dorsal lithotomy position depending on local preferences. Images are acquired at rest, during contraction of the pelvic floor muscles, and during a strain/Valsalva maneuver. For 2D imaging, the transducer is placed into the anal canal, and circumferential images of the top, middle, and distal anal canal are acquired. Characterization of the perineal body and the distance from the anal canal to the vagina is measured. For 3D volumetric imaging, the tip of the transducer is placed in the cephalad part of the anal canal. The transducer automatically acquires 3D volumetric data through the full length of the anal canal, which can be rendered into axial, sagittal, coronal, or additional oblique planes if needed for image analysis.
After the transducer is inserted up to 6 cm above the anal verge, various additional maneuvers may be performed to evaluate the levator plate, the anal sphincter complex, and the surrounding structures. This dynamic variant of aPFUS (also sometimes called “echodefecography”) involves insertion of ultrasound gel into the rectum after rectal cleansing with an enema. This is then followed by an evacuation maneuver, which further enhances the dynamic evaluation of the pelvic floor in defecatory dysfunction conditions.
Traditionally, operators have performed transperineal ultrasound with a 2- to 6-MHz curved array transducer (Fig. 1B) or 6- to 9-MHz end-fire transducer (Fig. 1C) with 3D/4-dimensional capabilities to image the pelvic floor. Images are acquired at rest and during contraction and strain/Valsalva maneuvers. Sometimes a patient is asked to defecate ultrasound gel during the examination. Images are obtained by placing a covered transducer between the labia minora and the perineum, typically beginning in a midsagittal position. The imaging starts with assessing the pelvic floor hiatus in a 2D midsagittal plane of the pelvic floor structures, including, from anterior to posterior, the following structures: pubic symphysis, urethra, bladder, vagina, anorectum, and levator plate. The levator plate is defined as the echogenic tissue in the midline posterior to the anorectal junction. Visualization is easier if the bladder contains a small volume of urine, and the rectum may remain empty or can be gently filled with a small amount of gel., Synthetic graft components are visualized with various ultrasound techniques, and ultrasound imaging is considered one of the primary modalities for this purpose, in particular for those with a suburethral component such as midurethral slings.
Following static images, cineloops are acquired at rest in the sagittal plane from right to left to include the obturator muscles. The key dynamic maneuver is acquired in the sagittal midline plane while the patient performs a sustained maximum pelvic floor strain/Valsalva maneuver. Many practitioners will add a pelvic floor contraction dynamic sequence to aid in determining which patients may benefit from pelvic floor physiotherapy. The dynamic strain/Valsalva technique is useful to visualize rectouterine pouch hernias, internal rectal intussusception, or rectoceles. 3D volume acquisitions enable multiplanar reformats in the coronal, axial, and sagittal planes, plus the rendered 3D view. The rendered 3D view and the axial multiplanar reformats are beneficial in determining the integrity of the levator ani muscles at their insertions and identifying levator ani avulsion. As the imaging quality of 3D systems improves, studies are progressively demonstrating a good correlation between aPFUS and pPFUS of the anal sphincter complex, particularly for OASIS, with sensitivity improving with expertise., The technique has become one of the more common pelvic floor imaging modalities because of its availability.
A vPFUS is performed using a side-fire transducer that obtains either axial or radial images of the pelvic floor. If performed with the same transducer used for aPFUS (Fig. 1D), vPFUS should be performed before aPFUS to avoid the introduction of rectal contents into the vagina after aPFUS. In addition to static images, dynamic evaluation of the pelvic floor can be achieved by instructing the patient to contract the pelvic floor muscles and then perform strain/Valsalva maneuvers while capturing cineloops of the bladder, rectum, anorectal angle flattening, and levator plate movement. Although the vPFUS transducer supports the vaginal apex and may reduce posterior vaginal prolapse (rectocele), rectal movement and persistent rectal intussusception may still be visualized. Rectouterine pouch hernias are visualized infrequently with vPFUS; these may be best pictured with pPFUS because of the nonobstructive nature of that approach. Once the dynamic images are obtained, the 3D volume may also be obtained to assess the integrity of levator ani musculature (LAM). vPFUS modality may also be used for discrimination between subdivisions of the LAM that may be injured (puborectalis, puboanalis, pubococcygeus/iliococcygeus), particularly in women after delivery.
IMAGING OF SPHINCTER ANATOMY
Fecal incontinence is a common condition with a profound and disabling impact on the quality of life. Understanding the anal sphincter anatomy may be helpful when choosing treatment for this condition. Ultrasound imaging is a relatively inexpensive examination that offers additional information regarding sphincter integrity and augments regular physical examination.,,,

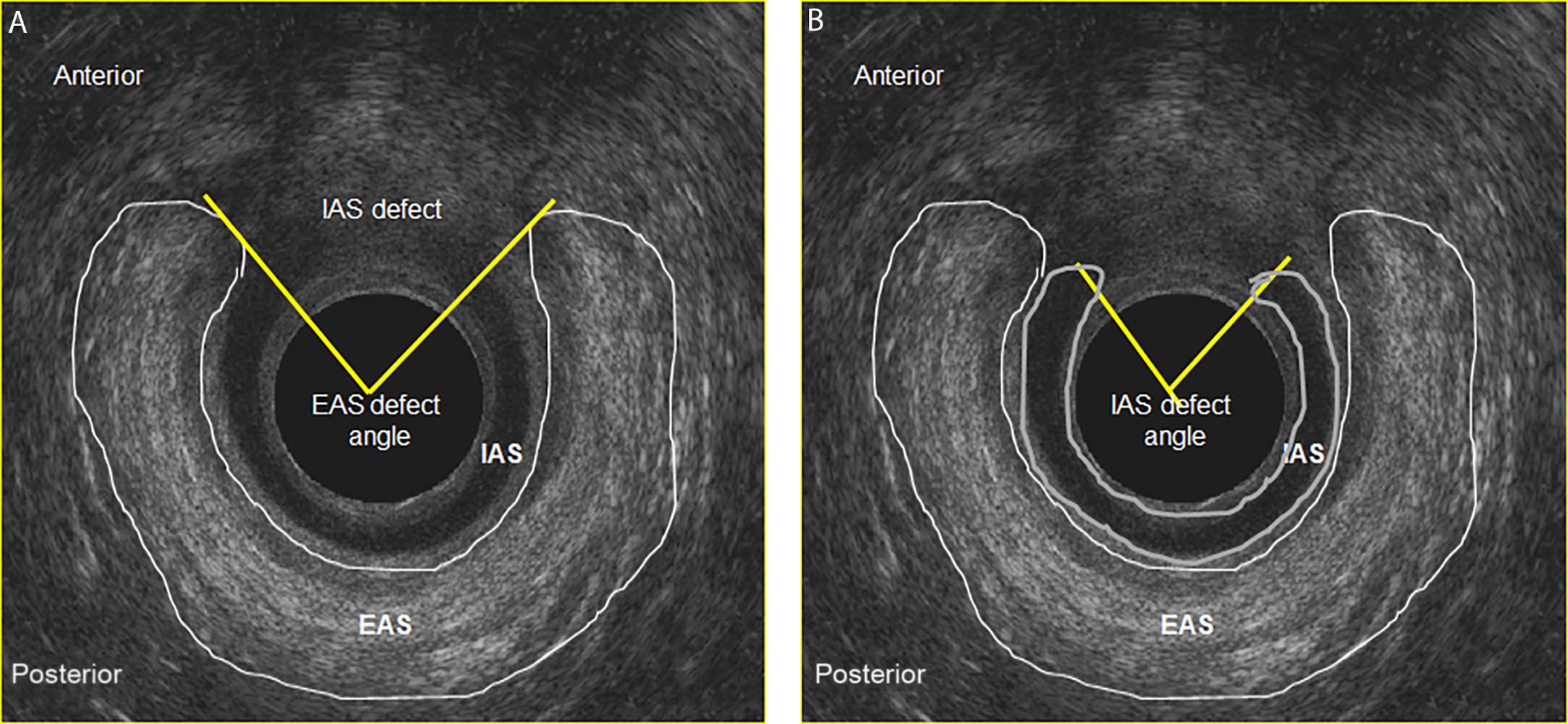

All forms of ultrasound imaging described above can visualize a typical anal sphincter complex, but aPFUS is considered the validated reference standard in evaluating anal sphincter anatomy (Fig. 2) and identifying defects. Performing pPFUS and vPFUS with conventional ultrasound transducers can also be useful in identifying sphincter normality for clinical purposes, but they are less detailed and have lower sensitivity. During the past decade, there has been a flurry of publications demonstrating the utility of pPFUS for the assessment of the anal complex. If there is any doubt about the integrity of the anal sphincter or pathology by pPFUS or vPFUS, the findings need to be further investigated with aPFUS. Using aPFUS, a clinician can identify the anal canal’s distinct muscular layers: the innermost anal mucosa, the internal sphincter (upper and middle anal canal), the longitudinal muscles, the intersphincteric space (upper and middle anal canal), and the outer striated sling-like levator plate muscles (puborectalis and pubococcygeus in the upper anal canal) or the striated external sphincter (middle and lower anal canal).,,, Its findings have been correlated with symptoms of both fecal incontinence and anorectal physiology findings., As with all PFUS techniques, aPFUS is associated with a learning curve, and specialized instruction/teaching are recommended for optimal technique and interpretation of the examination., In the absence of aPFUS capability, both pPFUS and vPFUS have good test accuracy and can be used as a screening tool to identify sphincter complex abnormalities with subsequent referral to specialists as necessary.,, With rising expertise and technological improvements in pPFUS and vPFUS, some literature suggests possible equivalency of these modalities to aPFUS. An MRI for detailed anatomic evaluation may be of value in the absence of access to aPFUS.
Obstetric anal sphincter injury is a common cause of fecal incontinence., Severe obstetric lesions occur after 1% to 5% of natural births, and endoanal ultrasonography can show hidden defects in at least a third of women after their first birth.,, However, some of these findings may not have clinical significance: in a study of 908 patients, a false positive OASIS rate of 7% was demonstrated. Other mechanisms of anal sphincter injury, such as anorectal procedures and anorectal pathology, can also result in anal incontinence. In a study of 123 anorectal surgery patients, subsequent lesions of the EAS and internal anal sphincter (IAS) were identified in 21% of cases.
PFUS is helpful for the identification and quantification of OASIS injuries and for recognition of IAS defects. These injuries have a pathognomonic appearance on aPFUS (Fig. 3). IAS tears usually appear as relatively hyperechoic defects in the hypoechoic muscle, and EAS tears appear as relatively hypoechoic defects in the hyperechoic circular wall of the anal musculature. In general, EAS defects are found more frequently in the midanal canal in the anterior quadrant in females. For the visualization of sphincter injuries, 3D aPFUS has higher intraobserver reliability than 2D aPFUS (98% for 3D versus 88% for 2D).
Important caveats in imaging include the following: 1) identification of the puborectalis muscles immediately cephalad to the anal sphincter; 2) differentiation of an anterior external sphincter injury versus a short anal sphincter in a female in the middle anal canal; 3) recognition that the distal anal canal only contains external sphincter; and 4) and a thinned out perineal body may be a sign of middle anal sphincter injury. The operator should carefully measure the degree of separation between the IAS and EAS and the specific level at which this separation is present. Further comments should be made as to whether this is a combined lesion of the IAS and EAS (see Video 1 at http://links.lww.com/DCR/C117). The number of defects and the extent of the defect circumferentially (radial angle in degrees or hours of the clock) and longitudinally (proximal, distal, or full length) should also be reported. In addition, 3D PFUS allows measurement of length, thickness, and angle of sphincter defect in multiple imaging planes. Other forms of PFUS can also provide this information when performed by appropriately trained sonographers and interpreting physicians.

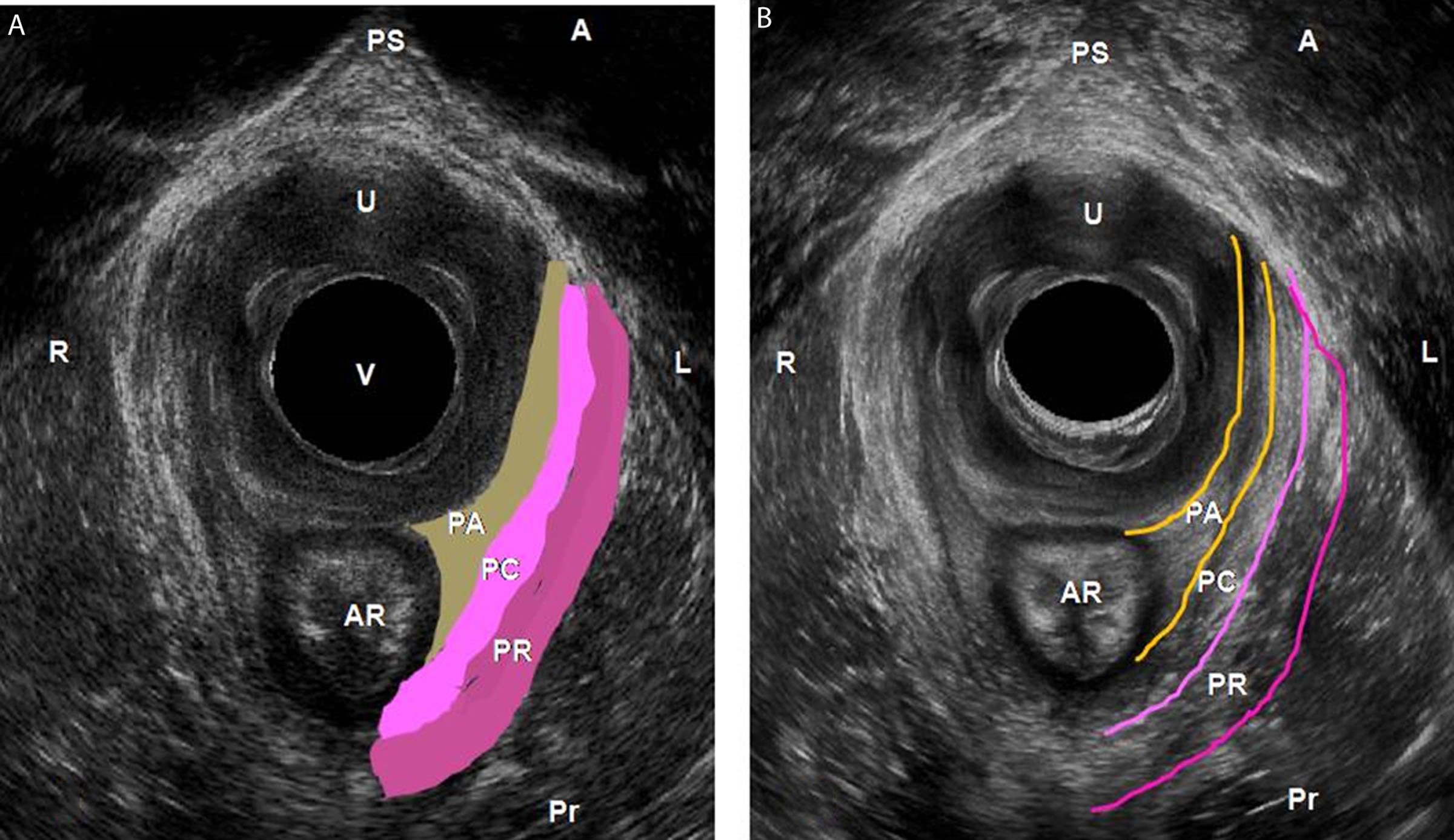

Various types of injury to the LAM are common after vaginal birth and may be associated with pelvic organ prolapse., The LAM includes the puborectalis, pubococcygeus, iliococcygeus, puboperinealis, and puboanalis muscles (Fig. 4). The pubococcygeus/iliococcygeus, puboperinealis, and puboanalis muscles are clearly seen by vPFUS. Data from women who have fecal incontinence of unknown cause suggest that women with obstructive defecatory symptoms have a wider rectum and more descent of the levator plate, regardless of the stage of prolapse or the severity of rectocele., Many women with visible anal sphincter tears may have coexisting LAM disruption or dysfunction, and these women may have worsened outcomes following traditional surgical procedures such as overlapping sphincteroplasty repairs, presumably because levator dysfunction can be associated with pudendal nerve injury during LAM overdistention, or avulsion., Thus, a careful concurrent characterization of LAM to further stratify OASIS patients may be clinically helpful.,
The LAM complex compresses and closes the pelvic outlet and provides support for the pelvic organs. A laxity or defect in the LAM is associated with the widening of the plane of minimum dimension or enlargement of the circumference of the urogenital hiatus., The minimum distance between the pubic symphysis and the posterior aspect of the anorectal junction at the level of the levator plate is termed the plane of minimum dimension, sometimes also referred to as minimal anatomic levator hiatus (Fig. 5). The plane of minimum dimension is located at the most caudal level of the LAM, at which the puborectalis muscle overlaps with pubococcygeus/iliococcygeal fibers posterior to the anorectum and creates the levator plate., The levator plate represents the junction of the LAM complex in the posterior midline at the level of the anorectal junction. LAM deficiency represents atrophy and global loss of the muscles. It is different from detachment or avulsion of the muscle from its origin at the pubic bone (Fig. 6), which can lead to distortion and/or downward displacement affecting the muscle and the functions of the pelvic organs., To evaluate the pelvic floor with vPFUS, as with other PFUS techniques, ultrasound imaging always starts with 2D dynamic pPFUS to assess for pelvic organ prolapse, followed by 3D vPFUS to assess LAM integrity (see Video 2 at http://links.lww.com/DCR/C47). If an anal sphincter injury or anorectal pathology is suspected, an aPFUS can be performed as well, although the expertise in all forms of PFUS is rapidly evolving. Some advocates argue that an ultrasound assessment of the pelvic floor should be used in routine clinical practice and that an assessment of avulsion and sphincter trauma should be a key quality indicator of maternity services; however, this idea is still widely debated.,
Dynamic Imaging of Pelvic Floor Movement
- 1. Ultrasound evaluation of the degree of relaxation of the puborectalis muscle can be obtained via several equally effective techniques and could offer an alternative imaging option to patients undergoing evaluation for pelvic floor dyssynergia (degree of consensus: 95%).
Abnormalities in pelvic floor movement and relaxation (such as pelvic floor dyssynergia) are associated with obstructed defecation and incomplete emptying. Understanding the movement of the puborectalis during the defecatory effort is essential when diagnosing pelvic floor dyssynergia, anismus, or the syndrome of paradoxical contraction of the puborectalis. In the past, this diagnosis was made by either EMG testing or by fluoroscopic or MRI defecography. EMG testing has been used to identify the lack of relaxation (or even a paradoxical contraction) of the puborectalis with strain/Valsalva. In fluoroscopic and MRI defecography, this pathology can be visualized by measuring the anorectal angle and visualizing the upward movement of the levator plate and anorectal junction. In many circumstances, more than 1 imaging modality may be used to confirm the diagnosis of dyssynergia.

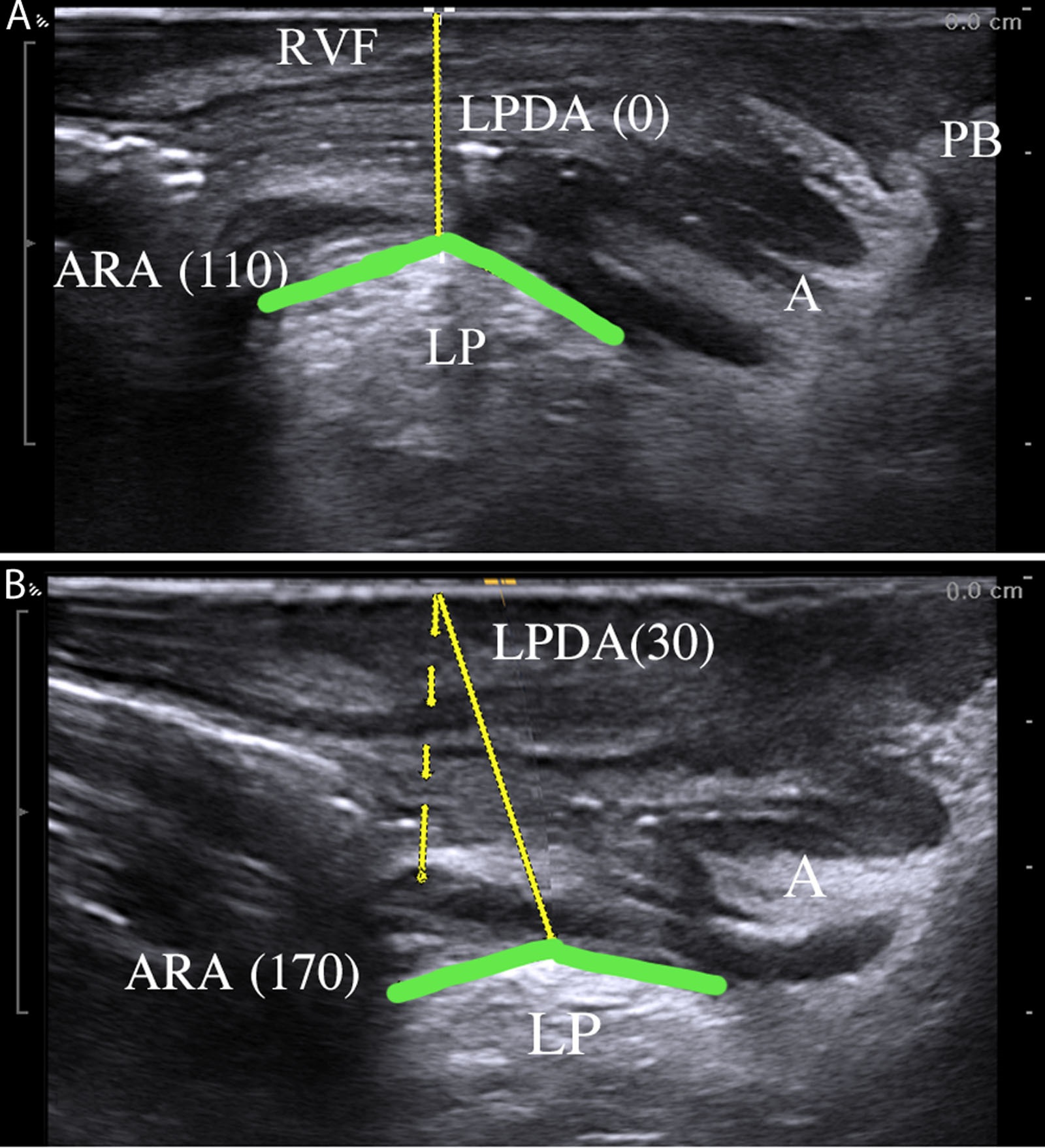

Studies have demonstrated that the movement of the levator plate (Fig. 7) can be easily seen on pPFUS, vPFUS, and aPFUS and that the presence or absence of dyssynergia should be part of a routine ultrasound interpretation synoptic report. Each approach has been validated in subjects with pelvic floor dyssynergia versus controls,,,, with a reasonable index of agreement between various scanning modes. Although the 3D vPFUS evaluates the integrity of LAM, the 2D dynamic pPFUS and vPFUS evaluate the movement of the levator plate structures in the midsagittal plane. aPFUS, pPFUS, and vPFUS have been correlated with standard defecography,,, although some debate regarding the agreement for anorectal angle measurements continues., The inconsistency in agreement for anorectal angle measurement between the ultrasound and fluoroscopic defecography may be because fluoroscopic defecography infers a change in anorectal angle based on visualization of radiopaque contrast within the rectum rather than the levator plate itself. During vPFUS, dyssynergia is recognized when ultrasound imaging demonstrates an upward lift or a lack of downward movement of the elevated levator plate with a strain/Valsalva maneuver.
- 2. Ultrasound evaluation of prolapse of the rectum can be obtained via several equally effective techniques and could offer an alternative imaging option to patients undergoing evaluation for symptoms of obstructed defecation syndrome (degree of consensus: 75%).

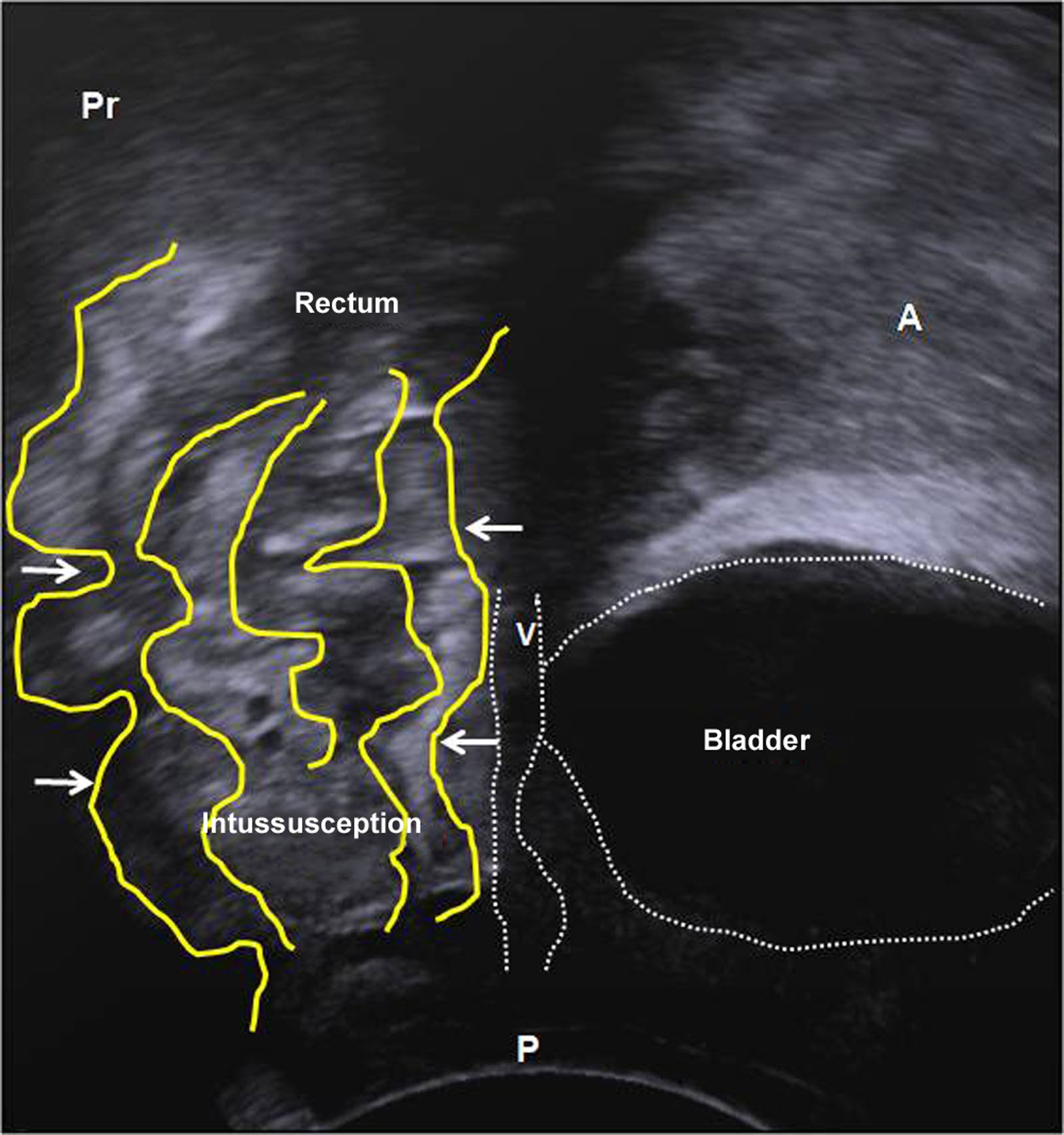

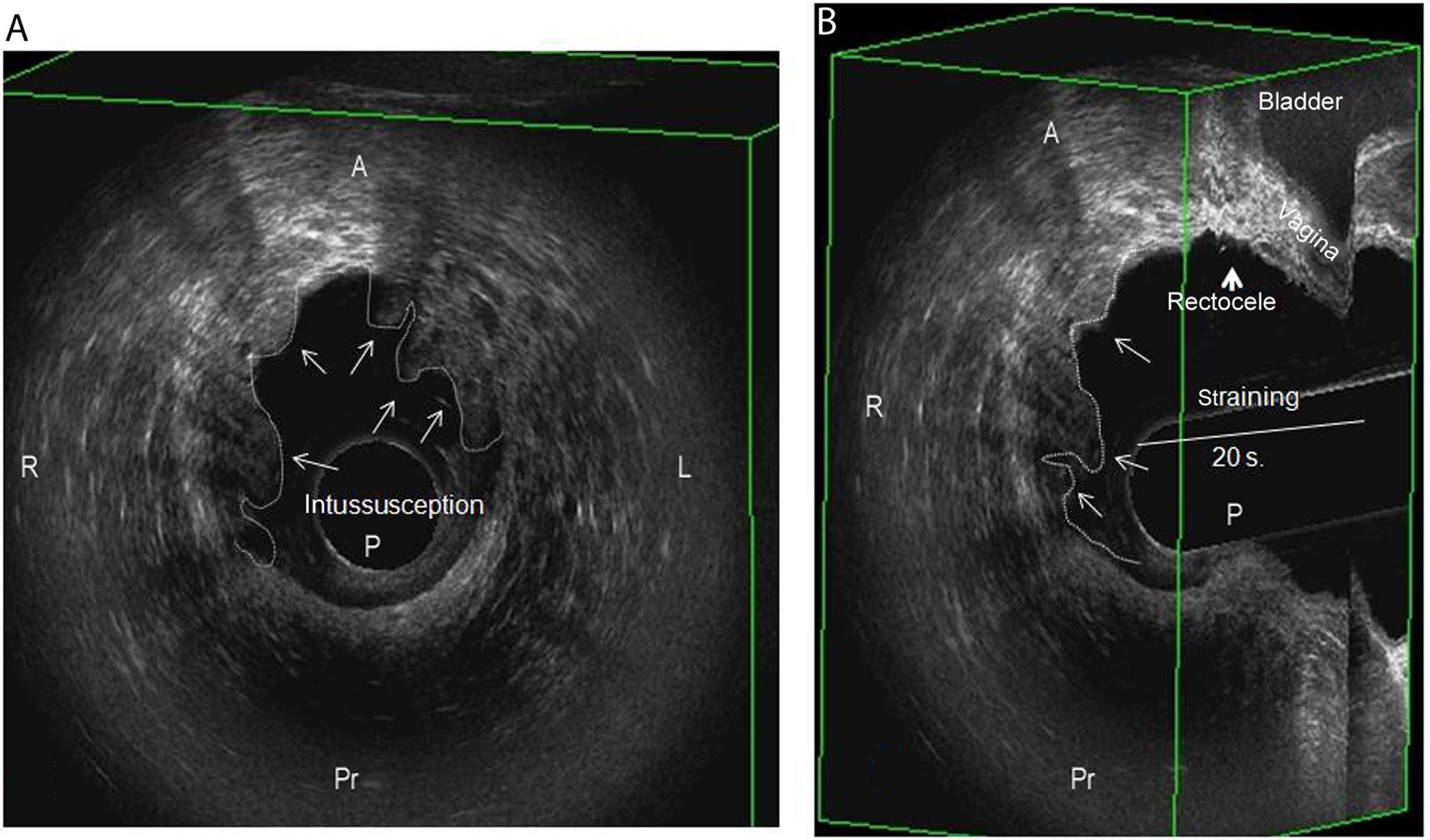

Internal prolapse or rectal intussusception is a circular or semilunar infolding of the rectal wall during Valsalva. Various classifications of rectal intussusception exist, but we believe that the most clinical interpretation of rectal intussusception involves the differentiation between whether the rectal infolding is intrarectal, intra-anal, or external (also called extra-anal or complete rectal prolapse). Diagnosis is often performed by proctologic examination with a proctoscope, but it can also be demonstrated by dynamic imaging methods such as dynamic PFUS (Figs. 8 and 9), fluoroscopic defecography, and MRI defecography.,, For each technique, interobserver agreement and agreement with fluoroscopic or MRI defecography have been demonstrated.,,,,
The consortium experts agreed that it might be reasonable to encourage routine evaluation and reporting of rectal wall mobility using ultrasound imaging. Although there is an initial learning curve, aPFUS, pPFUS, and vPFUS have good test accuracy and patient acceptability for the evaluation of rectal prolapse. Additional imaging modalities could be considered when treatment escalation is considered, especially during the early learning curve.
- 3. A) Ultrasound evaluation of rectoceles and their emptying can be obtained via several equally effective techniques and could offer an alternative imaging option to patients undergoing evaluation for symptoms of obstructed defecation syndrome (degree of consensus: 97%).
- B) For all ultrasound modes of imaging, measurements of the longest distance describing the rectocele outpouching from the anterior wall of the rectum are clinically the most helpful (degree of consensus: 96%).
- C) If possible, commenting on gel or stool retention within a rectocele is encouraged (degree of consensus: 97%).
A rectocele may be secondary to the herniation of the rectal muscularis, mucosa, and its contents along the posterior vaginal wall through a defect of the rectovaginal fibromuscularis. It can be present in asymptomatic women or may cause obstructive defecation symptoms, such as incomplete bowel emptying, need for strain/Valsalva during defecation, or feeling of a vaginal bulge. Dynamic observation of rectoceles involves a detailed description of the size of the rectocele outpouching in the longest AP diameter to intersect with a line drawn orthogonal to the anterior aspect of the anal sphincter and extending to the expected site of the anterior wall of the rectum. In addition, a description of the rectocele’s ability to hinder rectal emptying may further assist in surgical decision-making.

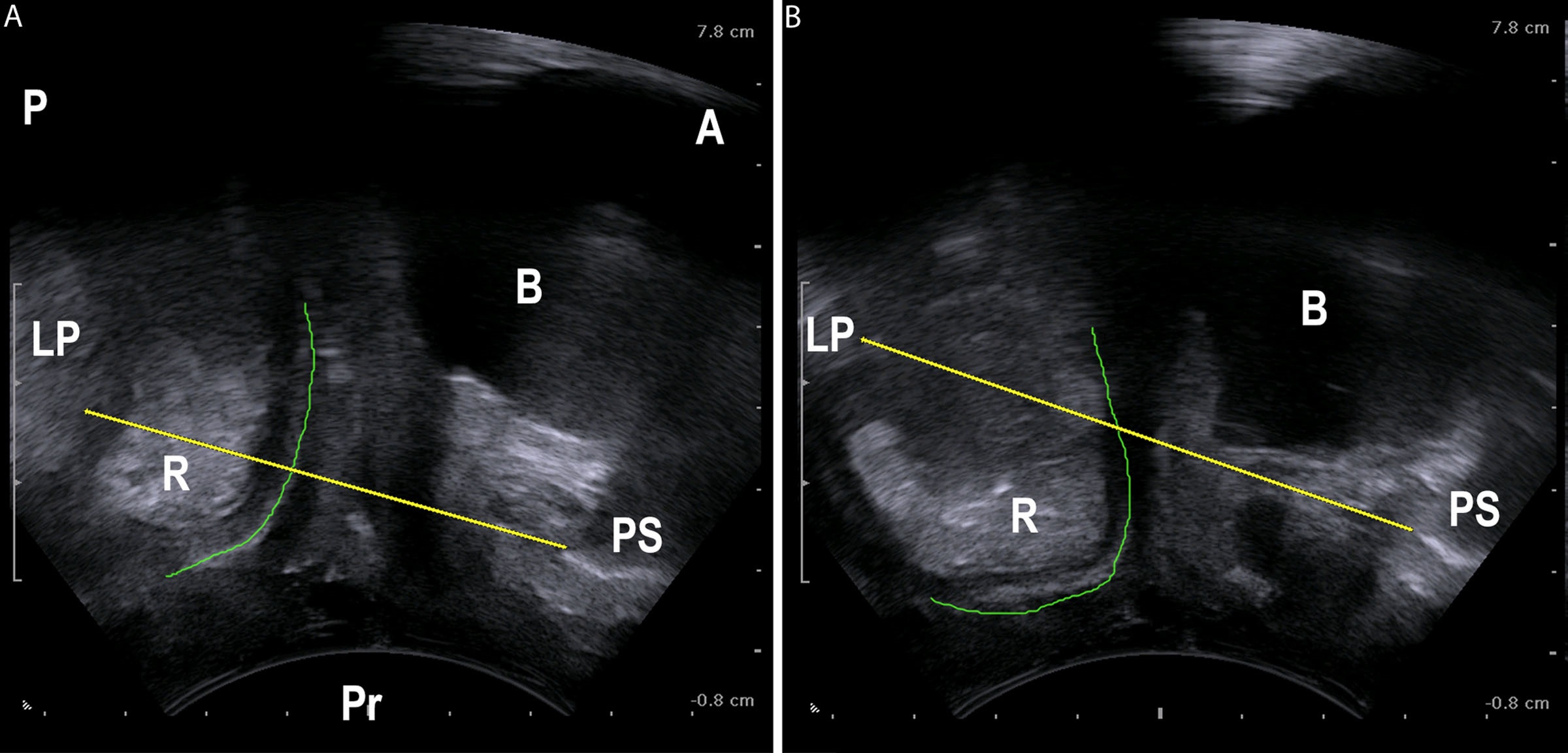

Rectoceles have been measured using aPFUS, vPFUS, and pPFUS (Fig. 10). These techniques have been compared and validated against MRI and fluoroscopic defecography. Evacuation proctography, MRI, pPFUS, and vPFUS have been shown to have similar diagnostic test accuracy, and pPFUS and vPFUS have good test accuracy and patient acceptability. There is no evidence that 4-dimensional pPFUS is superior to dynamic 2D acquisition in this regard. Some subtle variations exist between the various methods. For example, compared to pPFUS, during aPFUS, the transducer is placed inside the rectum. This may limit or block the full descent of the rectal wall during a strain/Valsalva maneuver, and this is a source of a possible false negative in patients with associated rectoceles. However, when aPFUS was compared with dynamic pPFUS using 60 mL of acoustic gel in the rectum, perfect concordance was noted between techniques (k = 0.98; 95% CI, 0.69–1.0). Ultrasound imaging has very good agreement with physical examination and reliably demonstrates rectocele emptying, both with and without rectal gel.,
Of note, vPFUS may be less effective in identifying rectoceles, as the transducer in the vagina can prohibit protrusion of the rectocele and/or the vaginal apex. Comparisons between vPFUS and pPFUS found that rectoceles are less common on transvaginal imaging but may be predictive for surgical interventions.
- 4. Ultrasound evaluation of rectouterine pouch structures and hernias (sigmoidocele, enterocele, peritoneocele) can be obtained via several equally effective techniques and could offer an alternative imaging option to patients undergoing evaluation for symptoms of obstructed defecation syndrome or pelvic organ prolapse (degree of consensus: 97%).
Diagnosing pelvic organ prolapse by physical examination alone has limitations, including the tendency to evaluate surface anatomy and to not assess the surrounding pelvic viscera. Therefore, we recommended integrating imaging evaluation as part of the diagnosis, measurement, and treatment of complex pelvic floor defects. Some varieties of pelvic organ prolapse of the posterior and apical compartment (sigmoidocele, enterocele, and peritoneocele) can be difficult, if not impossible, to diagnose by physical examination alone. Currently, there are no standardized definitions based on exact measurements of pelvic organ prolapse involving rectouterine pouch hernias. These herniations are usually associated with concomitant pelvic floor disorders and are rarely present as a single herniation. A pelvic peritoneal sac that herniates into the rectovaginal space may be referred to as an enterocele if it contains a portion of the small bowel. It is called a peritoneocele if it contains only peritoneal fat or a sigmoidocele if it includes a portion of the sigmoid colon. Because the rectovaginal space may be occupied by the distended rectum during defecation, the hernia may become evident only at the end of evacuation.

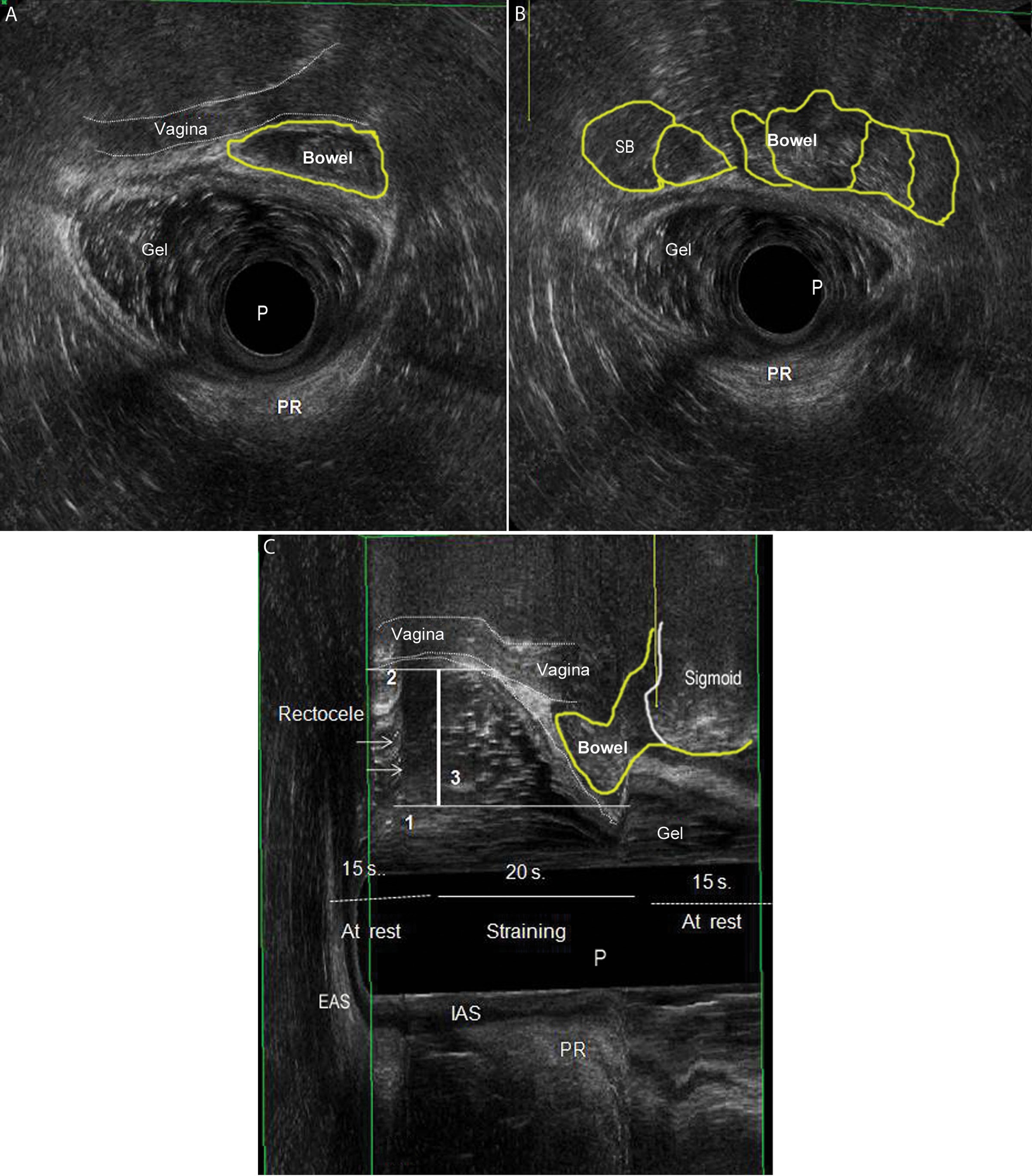

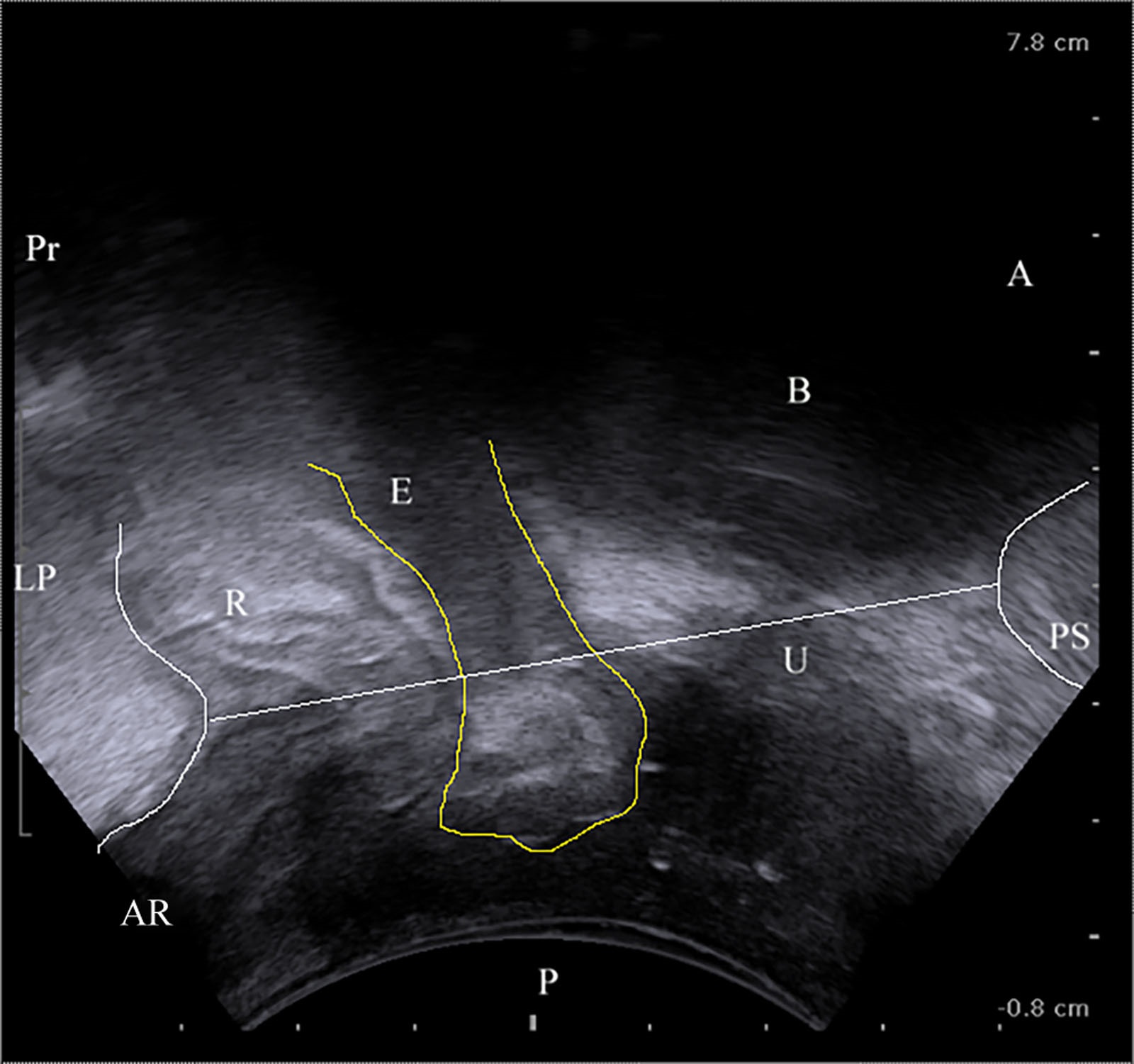

All of the 3 approaches—aPFUS, pPFUS, and vPFUS—have described steps that allow dynamic image captures (Figs. 11 and 12) to visualize the herniation of the peritoneal sac with or without the small bowel in the rectovaginal space, with a strong correlation of these observations to MRI findings.,,,, In the discussion of ultrasound imaging for the diagnosis of rectouterine pouch hernias, the consortium experts acknowledged that a well-conducted dynamic US is dependent on the operator’s skill as well as the degree of patient cooperation with the test. Rectouterine pouch hernias can be best seen during straining or rectal gel emptying maneuvers. This assessment should be performed after rectal gel (or rectum content) is fully evacuated to optimize conditions to diagnose pathology. Ultrasound imaging gives relevant information about the immediate local anatomy, such as layers of the bowel wall or sphincter complex, because of the high-resolution transducer’s proximity to these structures. The experts agreed that additional education efforts would be needed to increase expertise with these techniques among practitioners.
- 5. A) Ultrasound description of perineal descent can be obtained via several equally effective techniques (degree of consensus: 81%).
- B) Perineal descent is defined as a drop of the anorectal junction of >2 cm from its position at rest with Valsalva (degree of consensus: 71%).
Perineal descent has been frequently observed to coexist with pelvic organ prolapse and defecatory pelvic floor disorders. The clinical significance of its presence or absence is much debated. The consortium experts discussed the relevance of including quantification of this perineal descent into the recommended synoptic report for PFUS. It was agreed that the addition of this measurement is not particularly time consuming and that it could potentially aid future research on its significance in this patient population.
All PFUS modalities can be used to measure perineal descent (Fig. 13).,, Most of these approaches have good agreement between themselves and with MRI defecography,,,, and their measurements are highly reproducible. Some disagreement seems to exist between experts on whether the measurement should be obtained during a strain/Valsalva maneuver or at rest. The consortium experts agreed that the images should be obtained when the perineum is lowest (with evacuation or with maximum strain/Valsalva). Perineal descent should be reported as the distance of the anorectal junction below the plane of minimum dimension or the location of the anorectal junction at rest, and it may be clinically significant when the drop is >2 cm from its position at rest and should be noted in the synoptic report.
Consensus was reached by the PFDC on the many clinically relevant definitions and considerations for performing, interpreting, and reporting ultrasound imaging of the pelvic floor, regardless of the preferred imaging modality. A corresponding minimum synoptic interpretation template was suggested on the basis of these consensus guidelines (see Supplement 1 at http://links.lww.com/DCR/C46). The described technical steps and template can be augmented with additional sonographic maneuvers and report elements based on local practice patterns and additional expertise in a particular modality. The suggested minimum interpretation language suggested in this guidance should be considered when performing and interpreting PFUS in patients with pelvic floor–related evacuation disorders.
